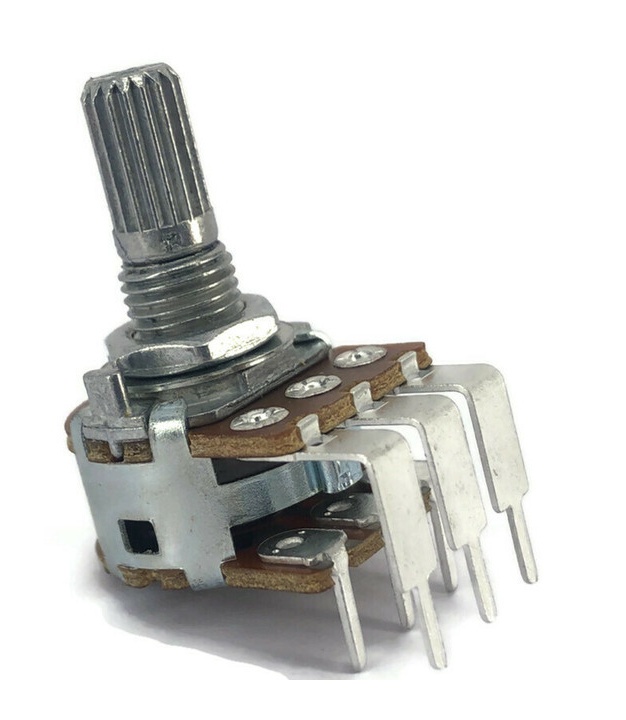

100K OHM Linear Dual Taper Potentiometer Spline Shaft PCB Mount

Sale

100K OHM Linear Dual Taper Potentiometer Spline Shaft PCB Mount

Available Qty: 1435

SKU: A-5379

ALPHA

ALPHA 17MM

SHAFT DIA: 6.00MM

B100K OHM LINEAR

Dual Gang PCB Mount

T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)

$0.89

Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16A01F-41-17K-B100K Datasheet: Click Here
RoHs: Yes

Specifications
Adjustment Type: Top Adjustment
Power: 0.125W
Resistance: 100K OHM OHMS
Type: Linear Dual Gang
Type B
Features
T18 Spline Shaft
Suits Most Standard Knobs
Shaft Diameter 6mm

Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Height 9mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items	-
SKU	A-5379
Manufacturer	ALPHA
MPN	RV16A01F-41-17K-B100K
Can be used with	-
