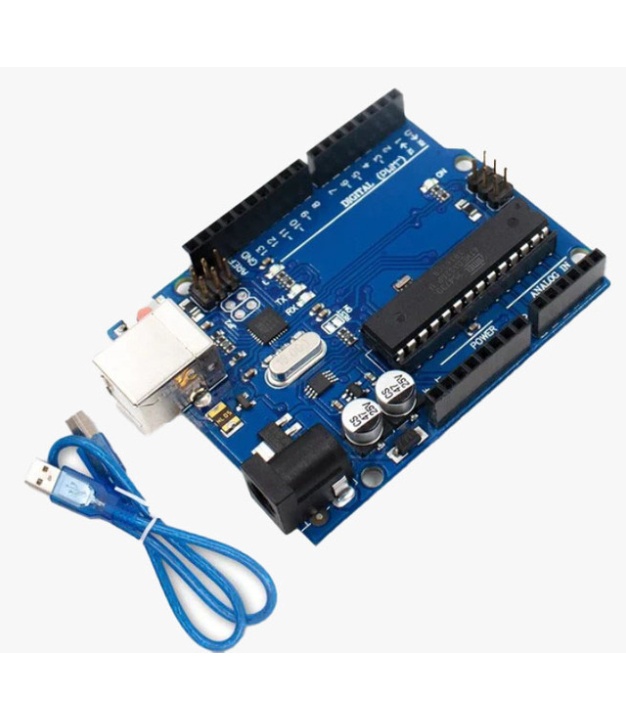

Uno R3 Board with MEGA328P ATMEGA328P U & ATMEGA16U2 & USB Cable Compatible with Arduino Uno R3
$9.99

Uno R3 Board with MEGA328P ATMEGA328P U & ATMEGA16U2 & USB Cable Compatible with Arduino Uno R3

Available Qty: 398888
SKU: A-2854
CHINA
$9.99
Have questions? Expert help just one click away Contact Us

Product Description

Uno R3 Board Compatible with Arduino Uno R3
ATMEGA328P U & ATMEGA16U2 Chip on Board

Easy to use with Arduino IDE, just set your board as Arduino Uno and you should be able to flash sketches immediately. Sold with a USB Cable.


This is the latest revision of the hugely popular Arduino Uno. It includes the SDA and SCL pins next to the AREF as well as the IOREF pin to make sure that your IO pins are referencing the proper ground.

Use the Arduino Uno R3 to learn to code. Learning how to use micro controllers or better understand the world around us. There are a million examples of how to use an Arduino for the first time. This includes an LED connected to Pin 13 already on the board, get up and running immediately working on this board.







Technical Specifications:
Microcontroller: ATmega328P
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Maximum Input Voltage: 20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
PWM Digital I/O Pins: 6
Analog Input Pins: 6
DC Current per I/O Pin: 20 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB of which 0.5 KB used by bootloader
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 16 MHz


Downloads









This product was updated on 15-06-2022 Chip from ATMEGA328P-PU to ATMEGA328P U

More Information

Same Spec Items -
SKU A-2854
Manufacturer CHINA
MPN UNO R3
