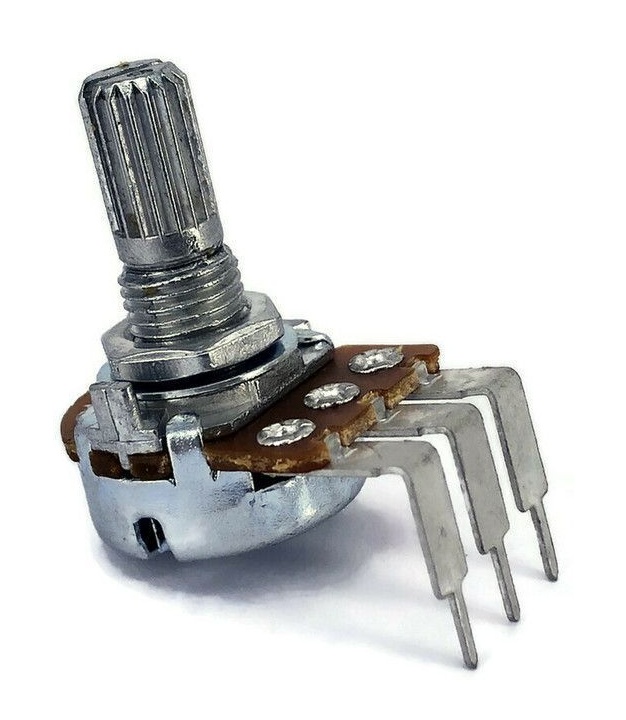

50K OHM Linear Taper Potentiometer Spline Shaft PCB Mount
SKU
A-1212
$0.59
In stock
Qty Available: 2773
Quick Overview
ALPHA - Get It Fast - Same Day Shipping
Details
Manufacturer Part No: RV16AF-41-17K-B50K
Datasheet: Click Here
RoHS: Yes
Specifications
Power: 0.125W
Resistance: 50K OHM OHMS
Type: Linear
Type B
Features
T18 Spline Shaft
PCB Mount
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 27 OCT 2022.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here
Additional Information
| SKU | A-1212 |
|---|---|
| Manufacturer | ALPHA |
| MPN | RV16AF-41-17K-B50K |
