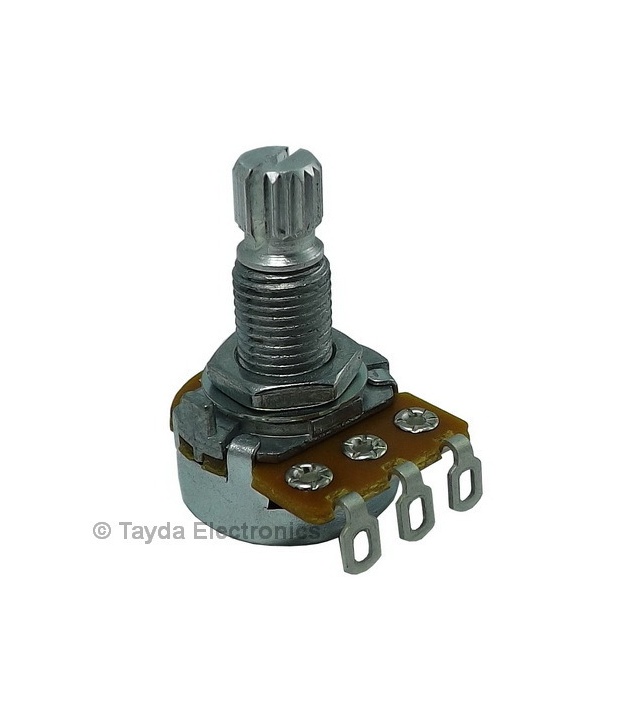

• 5K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs

5K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs

Be the first to review this product

$0.39

Qty Available: 0

Out of stock

Quick Overview

Get It Fast - Same Day Shipping

Details

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-10B6-17K-B5K
Datasheet: Click Here

Specifications
Power: 0.125W
Resistance: 5K OHM OHMS
Type: Linear
Type B
Features
Spline Shaft
Solder Lugs
Suits Most Standard knobs

Shaft Diameter: 6mm
Shaft Length: 17mm(7mm+10mm)
Length of thread : 10mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300
± 5°

Additional Information

Manufacturer ALPHA
MPN RV16AF-10B6-17K-B5K
SKU A-1896
