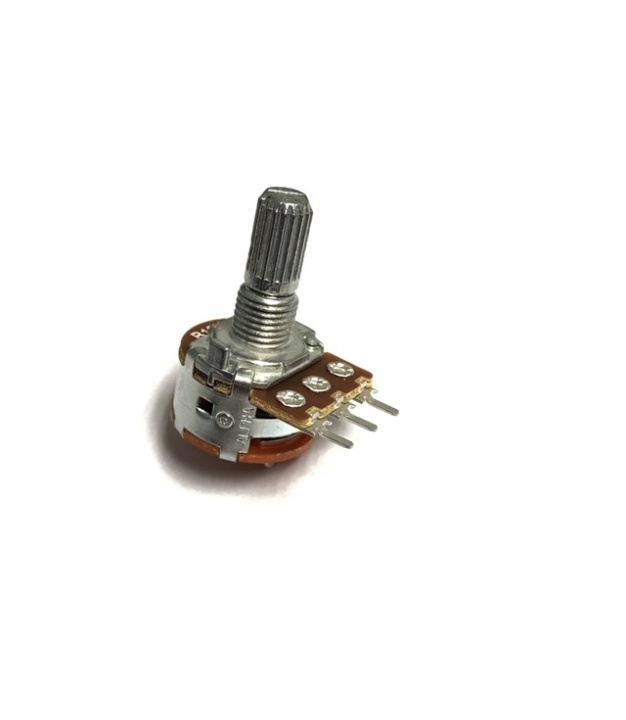

50K OHM Linear Taper Potentiometer On-Off Switch PCB Mount Knurled Shaft Dia: 6mm
  • 50K OHM Linear Taper Potentiometer On-Off Switch PCB Mount Knurled Shaft Dia: 6mm
  • 50K OHM Linear Taper Potentiometer On-Off Switch PCB Mount Knurled Shaft Dia: 6mm

50K OHM Linear Taper Potentiometer On-Off Switch PCB Mount Knurled Shaft Dia: 6mm

Be the first to review this product

$0.59

Qty Available: 99954

In stock

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer: ALPHA
Manufacturer Part No: RV16A04F-20-17K-B50K
PCB Mount
Datasheet: Click Here


Specifications
Power: 0.2W
Resistance: 50K OHM OHMS
Maximum Working Voltage: 200VAC
Switch Rating Voltage: 12VDC , 1A
Type: Linear
Type B
Features
On-Off Switch
PC Mount
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length:10mm
Length of thread : 6.5mm
Total Shaft Length(L):17 mm
Mounting Hole: 7mm
Base Diameter: 16mm
Total Rotation Angle: 300 ± 5°

Additional Information

Manufacturer ALPHA
MPN RV16A04F-20-17K-B50K
SKU A-2440
