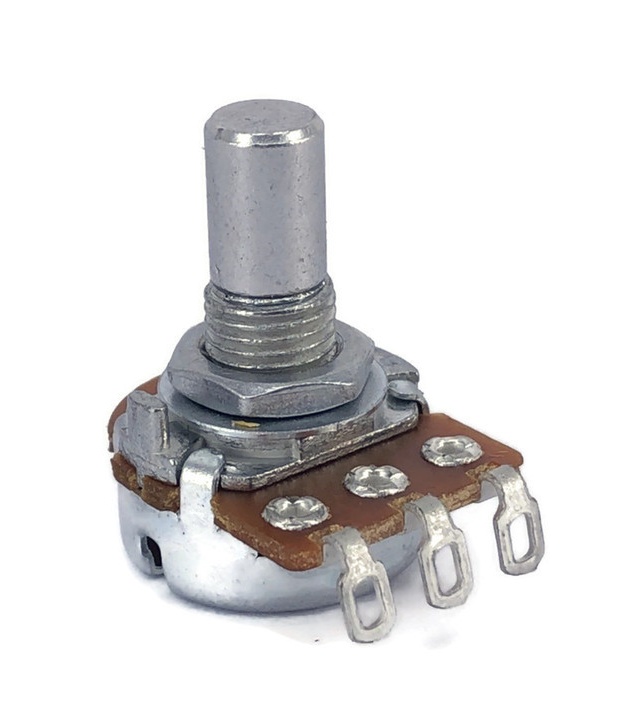

500K OHM Anti-Log Taper Potentiometer Solder Lugs Round Shaft Dia: 6.35mm
$0.50

500K OHM Anti-Log Taper Potentiometer Solder Lugs Round Shaft Dia: 6.35mm

Available Qty: 319 500 more arriving: Nov 1, 2026
SKU: A-4882
ALPHA
ALPHA 15MM l SOLDER LUGS
SHAFT DIA: 6.35MM
C500K OHM ANTI-LOG
ROUND SHAFT 15mm (8.5mm+6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-10-15R1-C500K
Solder Lugs
Datasheet: Click Here

Specifications
Power: 0.06W
Resistance: 500K OHM OHMS
Type: Anti-Log Reverse
Type C
Features
Solder Lugs
Round Shaft
Suits Most Standard knobs
Shaft Diameter: 6.35mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread : 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 29 APRIL 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-4882
Manufacturer ALPHA
MPN RV16AF-10-15R1-C500K
Can be used with -
