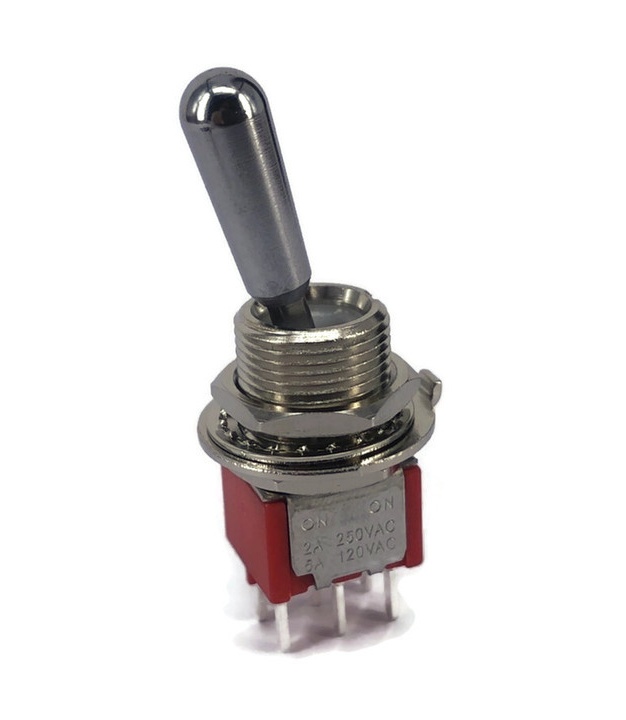

Mini Toggle Switch 1M Series DPDT On-On PC Thru-Hole 15/32 Bushing
$1.09

Mini Toggle Switch 1M Series DPDT On-On PC Thru-Hole 15/32 Bushing

Available Qty: 815
SKU: A-6585
DAILYWELL ELECTRONICS
Tayda Highly Recommends - Quality Guaranteed - This is same factory with E-Switch Brand!
Actuator: 17.56 high, 15/32 Bushing
Bushing: 11.38 high, 15/32 Bushing
$1.09
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Dailywell Electronics
Manufacture Part No.: 1MD1T8B18M2QES
Datasheet: Click  Here
RoHS: Yes

Switch Function: ON-ON
Switch Type: Latching
Lightweight Construction
PC Thru-Hole
Current Rating: 5A @ 120VAC or 28VDC
Body Length: 12.7mm, Body Width: 11.43mm, Body Height: 8.89mm
Pin Size(WxTxH): 1.27mmx0.76mmx5.10mm
Pin Spacing: 4.70mm
Actuator: 17.56 high, 15/32 Bushing
Bushing: 11.38 high, keyway 15/32 Bushing
Mounting Hole: 11.91mm diameter
Overall Height: 45.71mm

More Information

Same Spec Items -
SKU A-6585
Manufacturer DAILYWELL ELECTRONICS
MPN 1MD1T8B18M2QES
