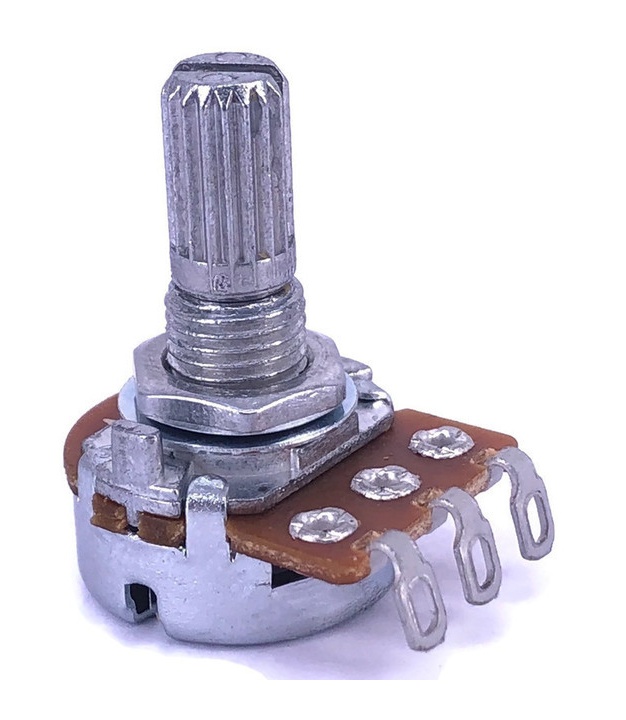

25K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs
$0.50

25K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs

Available Qty: 381
SKU: A-466
ALPHA
ALPHA
B25K OHM LINEAR
SOLDER LUGS
SPLINE SHAFT 15mm (10.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-10-17K-B25K
Solder Lugs
Datasheet: Click Here

Specifications
Adjustment Type: Top Adjustment
Power: 0.125W
Resistance: 25K OHM OHMS
Type: Linear
Type B
Features
Spline Shaft
Suits Most Standard knobs
Shaft Diameter: 6
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 29 JUNE 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here


More Information

Same Spec Items -
SKU A-466
Manufacturer ALPHA
MPN RV16AF-10-17K-B25K
Can be used with -
