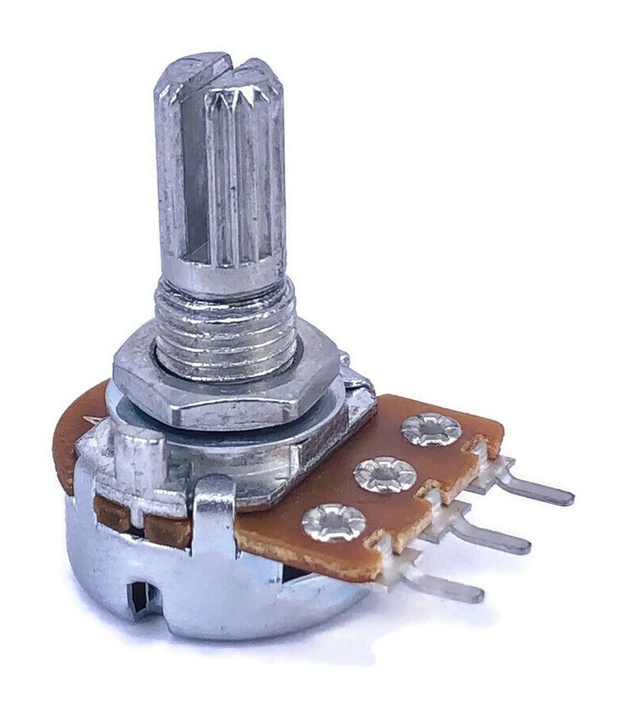

25K OHM Linear Taper Potentiometer Spline Shaft PCB Mount
$0.50

25K OHM Linear Taper Potentiometer Spline Shaft PCB Mount

Available Qty: 558
SKU: A-1988
ALPHA
ALPHA
B25K OHM LINEAR
PCB
T18 SPLINE SHAFT 17mm (10.5mm+6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
  • Qty
  • Price/Each
  • 100 - 499
  • $0.49
  • 500+
  • $0.48
Subtotal
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer ALPHA
Manufacturer Part No RV16AF-20-17K-B25K
PCB Mount
Datasheet: Click Here

Specifications
Adjustment Type Top Adjustment
Power 0.125W
Resistance 25K OHM OHMS
Type Linear
Type B
Features
Spline Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 2 SEPTEMBER 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-1988
Manufacturer ALPHA
MPN RV16AF-20-17K-B25K
Can be used with -

Customer Ratings

There are no reviews yet
