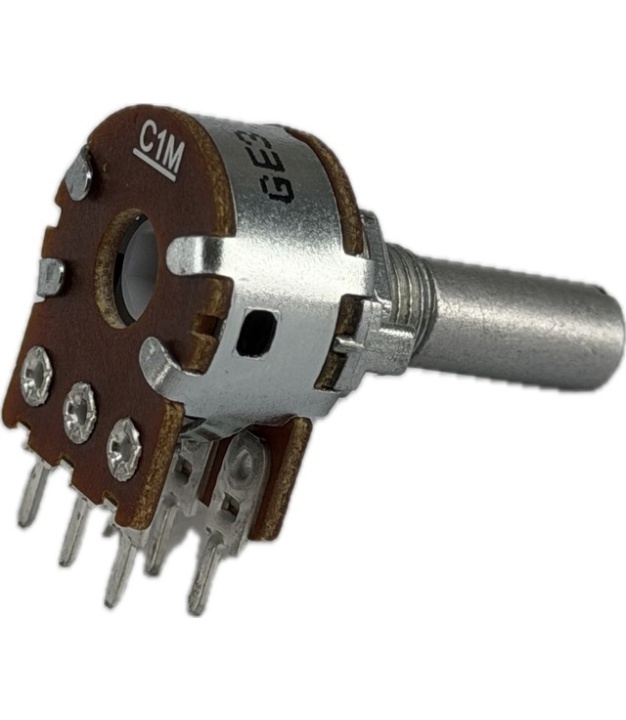

1M OHM Anti-Log Dual Taper Potentiometer PCB Mount Round 20mm Shaft Dia: 6.00mm
$0.99

1M OHM Anti-Log Dual Taper Potentiometer PCB Mount Round 20mm Shaft Dia: 6.00mm

Available Qty: 500
SKU: A-8590
ALPHA TAIWAN
ROUND SHAFT 20mm (13.5mm + 6.5mm)
SHAFT DIA: 6.00MM
C1M OHM ANTI-LOG
Dual Gang PCB Mount
$0.99
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16A01F-20-20S- C1M
Datasheet: Click Here
RoHs: Yes

Specifications
Power: 0.1W
Resistance: 1M OHM OHMS
Type: Anti-Log Reverse
Type C
Features
Round Shaft
Shaft Diameter: 6.00mm
Shaft Length: 20mm(13.5mm+6.5mm)
Length of thread : 6.5mm
Mounting Hole: 7mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-8590
Manufacturer ALPHA TAIWAN
MPN RV16A01F-20-20S- C1M
