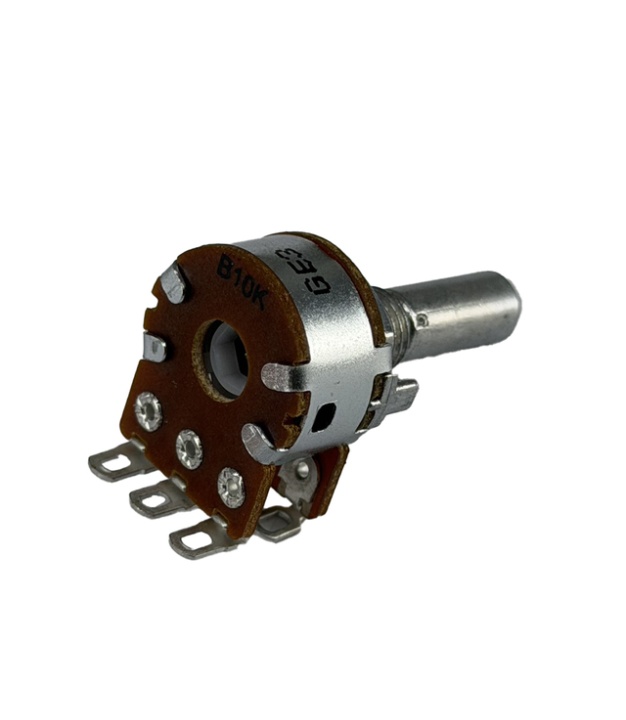

10K OHM Linear Dual Taper Potentiometer Solder Lugs Round 20mm Shaft Dia: 6.00mm
$0.99

10K OHM Linear Dual Taper Potentiometer Solder Lugs Round 20mm Shaft Dia: 6.00mm

Available Qty: 500
SKU: A-8591
ALPHA
ROUND SHAFT 20mm (13.5mm + 6.5mm)
SHAFT DIA: 6.00MM
B10K LINEAR
Dual Gang Solder Lugs
$0.99
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16A01F-10-20R-B10K-3
Datasheet: Click Here
RoHs: Yes

Specifications
Power: 0.2W
Resistance: 10K OHM OHMS
Type: Linear
Type B
Features
Round Shaft
Shaft Diameter: 6.00mm
Shaft Length: 20mm(13.5mm+6.5mm)
Length of thread : 6.5mm
Mounting Hole: 7mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-8591
Manufacturer ALPHA
MPN RV16A01F-10-20R-B10K-3
