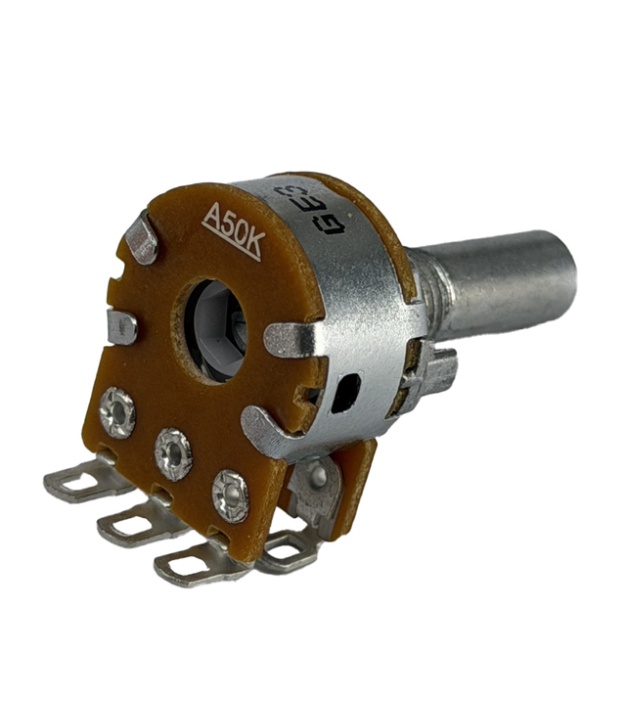

50K OHM Logarithmic Dual Taper Potentiometer Solder Lug Round 20mm Shaft Dia: 6.00mm
$0.99

50K OHM Logarithmic Dual Taper Potentiometer Solder Lug Round 20mm Shaft Dia: 6.00mm

Available Qty: 500
SKU: A-8592
ALPHA
ROUND SHAFT 20mm (13.5mm + 6.5mm)
SHAFT DIA: 6.00MM
A50K Logarithmic
Dual Gang Solder Lugs
$0.99
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16A01F-10-20R-A50K
Datasheet: Click Here
RoHs: Yes

Specifications
Power: 0.1W
Resistance: 50K OHM OHMS
Type: Logarithmic
Type A
Features
Round Shaft
Shaft Diameter: 6.00mm
Shaft Length: 20mm(13.5mm+6.5mm)
Length of thread : 6.5mm
Mounting Hole: 7mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-8592
Manufacturer ALPHA
MPN RV16A01F-10-20R-A50K
OG image no_selection
Can be used with -

Customer Ratings

There are no reviews yet
