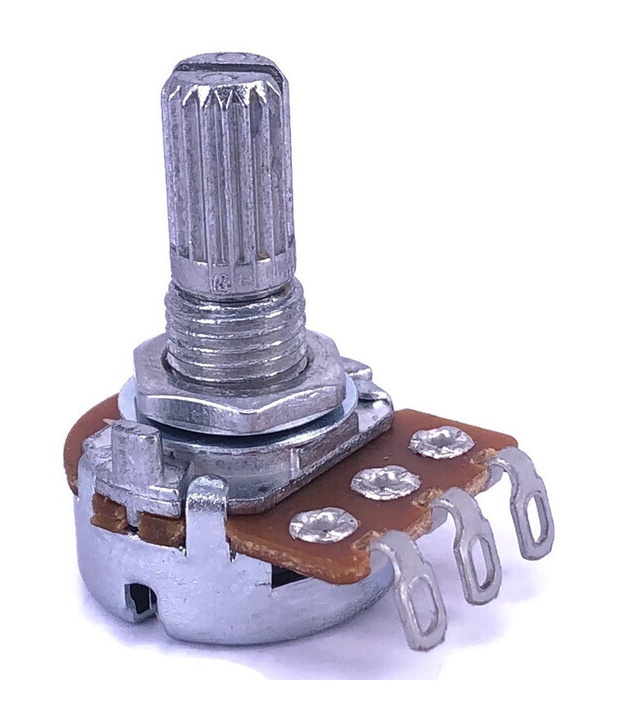

200K OHM Logarithmic Taper Potentiometer with Solder Lugs
  • 200K OHM Logarithmic Taper Potentiometer with Solder Lugs

200K OHM Logarithmic Taper Potentiometer with Solder Lugs

Be the first to review this product

$0.50

Qty Available: 118433

In stock

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer ALPHA
Manufacturer Part No A200K 17mm
With Dust Seal
Solder Lugs

Datasheet: Click Here
RoHS: Yes

Specifications
Adjustment Type Top Adjustment
Power 0.06W
Resistance 200K OHM OHMS
Type Logarithmic
Type A
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter 6mm

Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm

Rotation Angle: 300 ± 5°

Additional Information

Manufacturer ALPHA
MPN A200K 17mm
SKU A-1976
