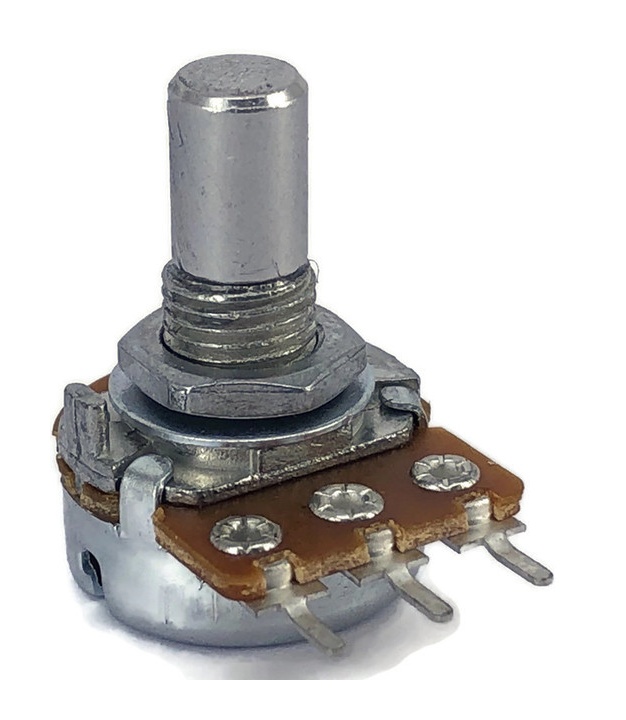

1M OHM Logarithmic Taper Potentiometer Round Shaft PCB Mount
$0.50

1M OHM Logarithmic Taper Potentiometer Round Shaft PCB Mount

Available Qty: 301
SKU: A-3553
ALPHA
ALPHA 16MM
A1M OHM LOGARITHMIC
PCB
ROUND SHAFT 15mm (8.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer ALPHA
Manufacturer Part No RV16AF-20-15R-A1M
Datasheet: Click Here
RoHS: Yes

Specifications
Power: 0.06W
Resistance 1M OHM OHMS
Type: Logarithmic
Type A
Features
PCB Mount
Round Shaft
Suits Most Standard knobs
Shaft Diameter 6mm
Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread 6.5mm
PCB Mounting Hole: 5mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 29 JUNE 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-3553
Manufacturer ALPHA
MPN RV16AF-20-15R-A1M
Can be used with -
