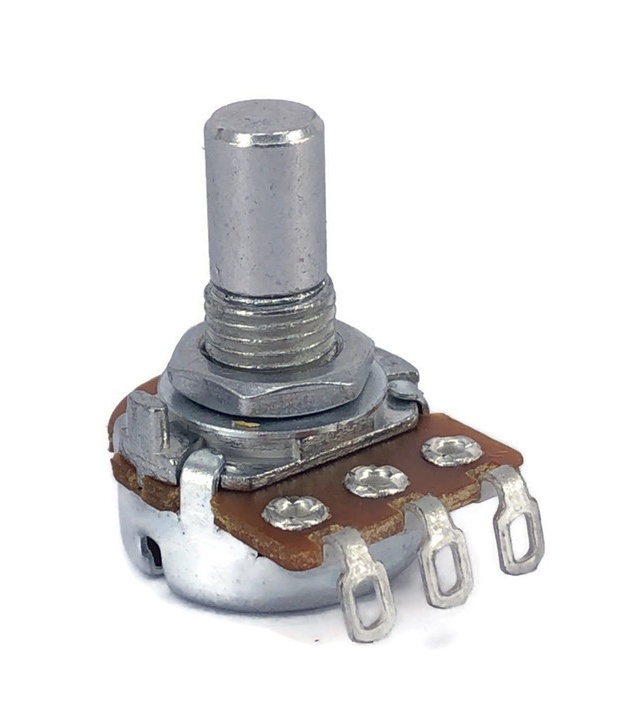

1M OHM Linear Taper Potentiometer Solder Lugs Round Shaft Dia: 6mm
$0.50

1M OHM Linear Taper Potentiometer Solder Lugs Round Shaft Dia: 6mm

Available Qty: 495 500 more arriving: Nov 30, 2026
SKU: A-1658
ALPHA
ALPHA 16MM l SOLDER LUGS
SHAFT DIA: 6MM
B1M OHM LINEAR
ROUND SHAFT 15mm (8.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
  • Qty
  • Price/Each
  • 100 - 499
  • $0.49
  • 500+
  • $0.48
Subtotal
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-10-15R-B1M
Datasheet: Click Here

Specifications
Power: 0.125W
Resistance: 1M OHM OHMS
Type: Linear
Type B
Features
Solder Lugs
Round Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm

Shaft Length: 15mm(8.5mm+6.5mm)
Length of thread : 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 25 January 2022.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-1658
Manufacturer ALPHA
MPN RV16AF-10-15R-B1M
