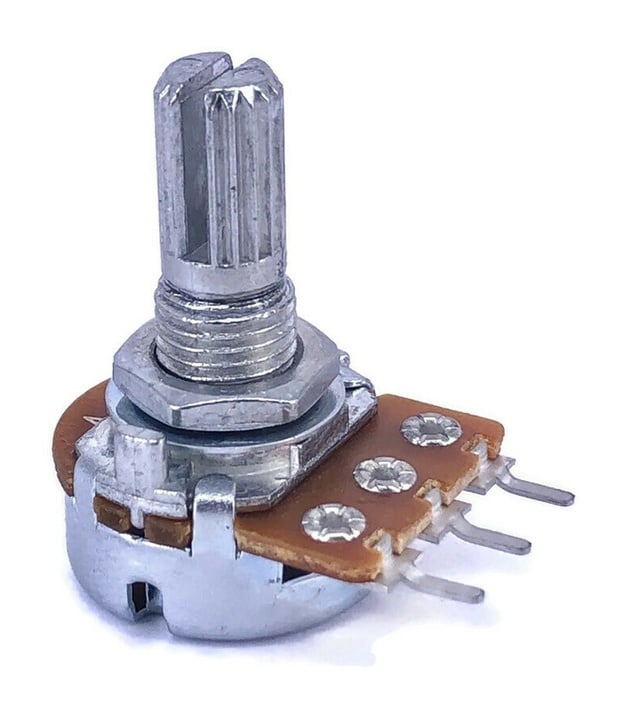

1M OHM C1M 1MC Anti-Log Taper Potentiometer
$0.50

1M OHM C1M 1MC Anti-Log Taper Potentiometer

Available Qty: 623
SKU: A-1977
ALPHA
ALPHA 17MM
SHAFT DIA: 6.00MM
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: C1M 17mm
Datasheet: Click Here
RoHS: Yes


Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 1M OHM OHMS
Type: Anti-Log Reverse
Type C
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 01 DEC  2023.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-1977
Manufacturer ALPHA
MPN C1M 17mm
Can be used with -

Customer Ratings

5/5
Based on 1 reviews

5 Stars

3

4 Stars

0

3 Stars

0

2 Stars

0

1 Star

0
Quality
Value
Price
Great pot
These are the pots that go into the Stingray, Sabre, and G&L guitar and bass preamps. They are also used in some vintage gutar effects. The tolerance range is very nice. My batch were in the 995K - 1024K range. The pot turning resistance is nice, not too loose.
