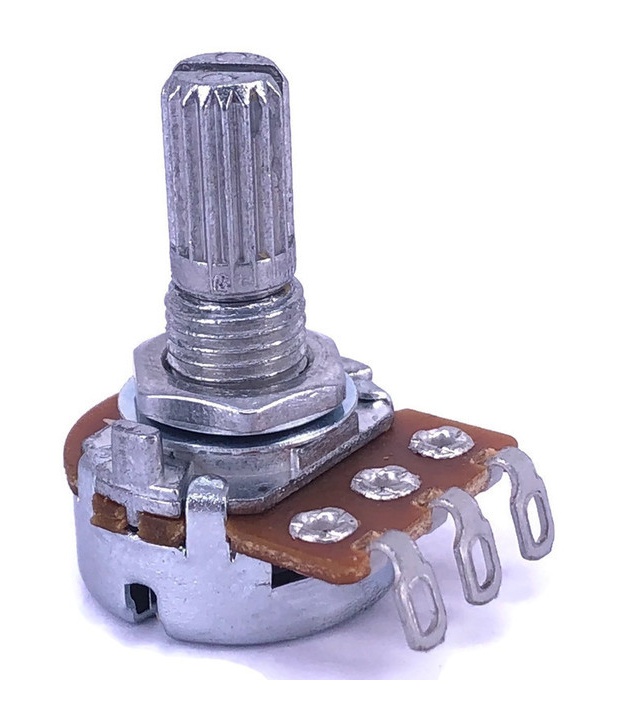

1K OHM Logarithmic Taper Potentiometer with Solder Lugs
$0.50

1K OHM Logarithmic Taper Potentiometer with Solder Lugs

Available Qty: 261
SKU: A-1974
ALPHA
ALPHA 17MM
SHAFT DIA: 6.00MM
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm+6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: A1K 17mm
Solder Lugs
Datasheet: Click Here
RoHS: Yes

Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 1K OHM OHMS
Type: Logarithmic
Type A
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 26 April 2022.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-1974
Manufacturer ALPHA
MPN A1K 17mm
Can be used with -

Customer Ratings

4.7/5
Based on 1 reviews

5 Stars

2

4 Stars

1

3 Stars

0

2 Stars

0

1 Star

0
Price
Quality
Value
guitar, effect, amp...they are good for everything!
Really well done potentiometer. I really like how they screw in and out, they have such a nice resistance doing that....not like those cheap potentiometers that go turning how they want. they are good in everything, I have been using them for guitar pedal or valve amp....really happy! they at all don't scratch or fuzz.
