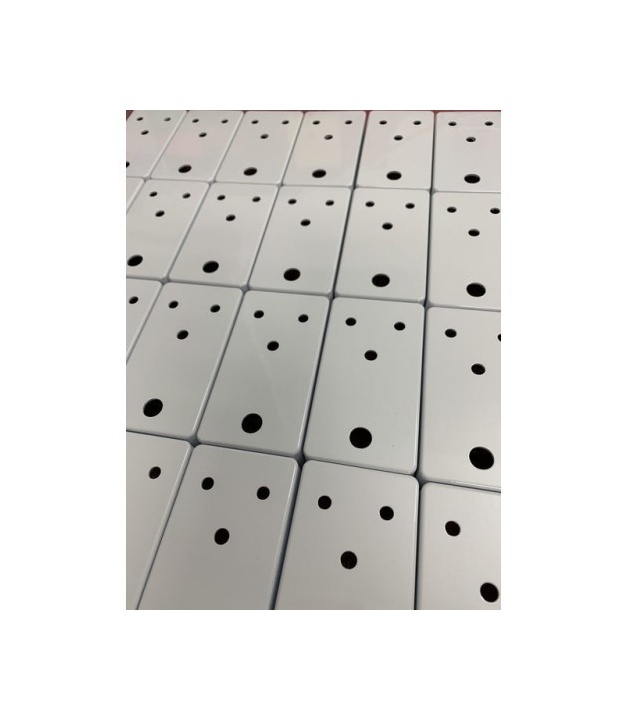

1590BB ENCLOSURE CUSTOM DRILL SERVICE

SKU
A-5164-CST-DR1
$4.50
  • Buy 5 for $3.50 each and save 22%
  • Buy 10 for $3.00 each and save 33%
  • Buy 25 for $2.50 each and save 44%
  • Buy 50 for $2.00 each and save 56%
In stock Qty Available: 398459

Quick Overview

Tayda Electronics - Get It Fast - Same Day Shipping

Details

1590BB ENCLOSURE DRILL SERVICE FOR YOUR TEMPLATES
Maximum 40 drill points is allowed for this service. If you need more drill holes you can buy ADDITIONAL HOLES FOR REGULAR DRILL SERVICE  , if you use lines option to create shapes you don't need to buy additional service for additional holes.
PLEASE TAKE MEASUREMENTS FROM CENTERS OF SIDES AND IN MILLIMETERS (WITHOUT ENLCOSURE LID). MINIUM HOLE SIZE IS 3MM.  PLEASE TAKE MEASUREMENTS WITHOUT ENCLOSURE LID / COVER.

YOU CAN ALSO USE OUR "Tyada Box Tool" TO VISIUALLY SEE YOUR TEMPLATE RESULTS. PLEASE STUDY THIS LINK http://drill.taydakits.com/

STEP BY STEP

STEP-1
-PREPARE YOUR COORDINATES IN MILLIMETERS MEASURED FROM CENTERS OF SIDES.
***IF YOUR ENCLOSURE IS POWDER COATED THEN PLEASE ADD 0.2MM TO YOUR HOLE DIAMETERS BECAUSE POWDER COATING HAS 0.2MM THICKNESS AT LEAST. SO IF YOU NEED 9MM HOLE DIAMETER THEN PLEASE WRITE 9.20 FOR HOLE DIAMETER. WE FIRST DRILL AND THEN POWDER COAT ENCLOSURES.

STEP 2
-ADD POWDERCOATED OR BARE ENCLOSURE TO YOUR CART

STEP 3
-ADD ENCLOSURE CUSTOM DRILL SERVICE TO YOUR CART AND GO THROUGH CHECKOUT PROCESS.

FINAL STEP 4
-AFTER CHECKOUT PLEASE GO TO http://drill.taydakits.com/  TO SUBMIT YOUR TEMPLATE COORDINATES. YOU WILL NEED TO REGISTER ACCOUNT THERE FIRST, WHEN YOU REGISTER PLEASE USE THE SAME EMAIL ADDRESS AS YOUR TAYDA ACCOUNT, PASSWORD CAN BE DIFFERENT, AFTER REGISTERING ACCOUNT WITH TAYDA BOX TOOL YOU WILL RECEIVE EMAIL WITH CONFIRMATION LINK IN IT AND PLEASE CLICK ON LINK TO CONFIRM YOUR ACCOUNT OTHERWISE YOU WON'T SEE YOUR ORDERS IN THERE.


*YOU CAN ORDER OTHER ITEMS WITH YOUR ENCLOSURE CUSTOM DRILL SERVICE ORDER BUT PLEASE NOTE THAT ALL OF THEM WILL BE SHIPPED TOGETHER ONCE ENCLOSURES ARE READY.
**THIS SERVICE MIGHT TAKE 4 - 5 BUSINESS DAYS FOR PRODUCTION.
***TOLERANCE +/- 0.5MM. (Face)
***TOLERANCE +/- 1MM (SIDES)

Additional Information

More Information
SKU A-5164-CST-DR1
Manufacturer Tayda Electronics
MPN A-5164-CST-DR1
