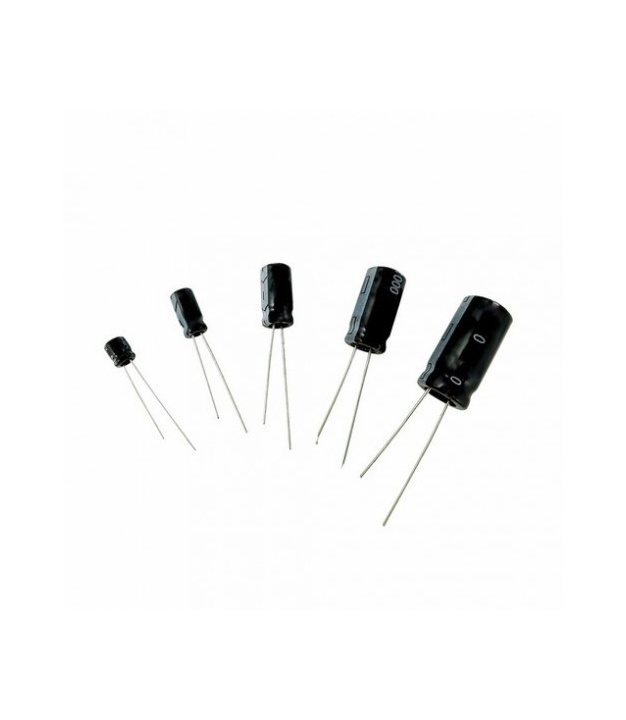

120uF 63V 105C Aluminum Electrolytic Capacitor 8x15mm PANASONIC

SKU: A-3945
Panasonic
Tolerance: ±20 % (120Hz/+20 ° C)
Pin Spacing: 3.5±0.5 mm
FS Series
Long Life Up To 5000 Hours
Low Impedance,Low ESR
Wide Temperature Range
$0.49
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Panasonic
Manufacturer Part No.: EEUFS1J121L
Datasheet: Click Here
RoHS: Yes

Features:
-Wide temperature range, long life: 105℃ 5000 to 10000 hours.
-Low Impedance

Specifications
Capacitance: 120uF
Voltage-Rated: 63V
Tolerance: ±20%
Wide Operating Temperature Range: -40°C to +105°C
Ripple Current (100 kHz) (+105°C): 741mA
Diameter*Length: 8*15 mm
Lead Diameter : 0.6 ± 0.05 mm
Pin Spacing: 3.5 ± 0.5 mm

More Information

Same Spec Items -
SKU A-3945
Manufacturer Panasonic
MPN EEUFS1J121L
Can be used with -

Customer Ratings

There are no reviews yet
