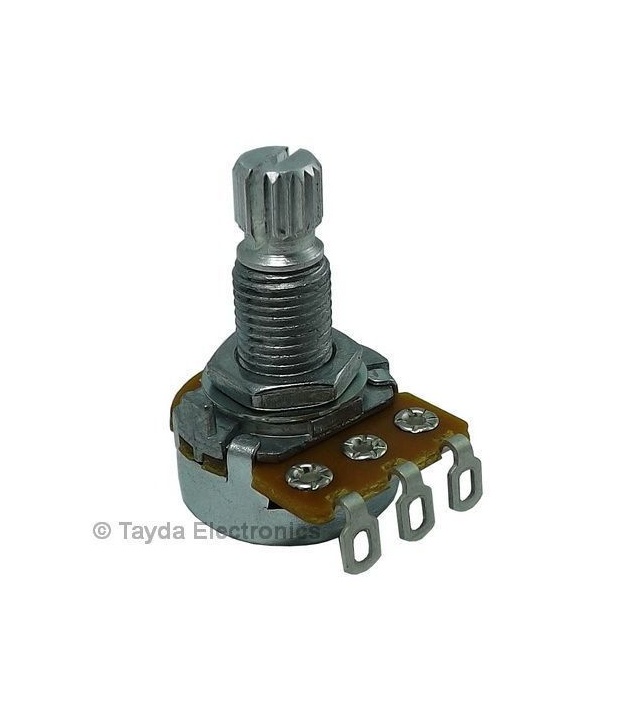

10K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs with Center Detent
SKU
A-4839
$0.66
Out of stock
Quick Overview
Get It Fast - Same Day Shipping
Details
Manufacturer Part No: RV16AF-10B6-17K-B10K-CC
Datasheet: Click Here
Specifications
Power: 0.125W
Resistance: 10K OHM OHMS
Type: Linear
Type B
Features
Center Detent
Spline Shaft
Solder Lugs
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(7mm+10mm)
Length of thread : 10mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
Additional Information
| SKU | A-4839 |
|---|---|
| Manufacturer | ALPHA |
| MPN | RV16AF-10B6-17K-B10K-CC |
