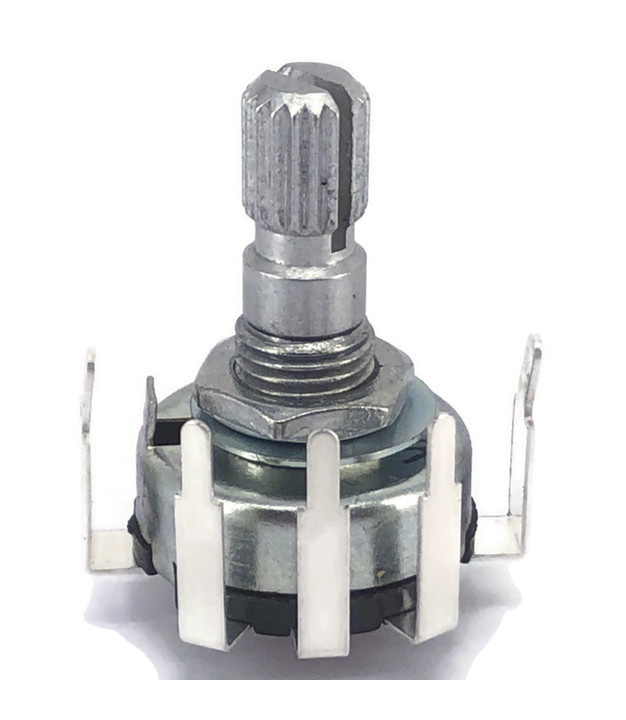

10K OHM Linear Taper Potentiometer On-Off Switch PCB Mount Knurled Shaft Dia: 6mm
  • 10K OHM Linear Taper Potentiometer On-Off Switch PCB Mount Knurled Shaft Dia: 6mm
  • 10K OHM Linear Taper Potentiometer On-Off Switch PCB Mount Knurled Shaft Dia: 6mm

10K OHM Linear Taper Potentiometer On-Off Switch PCB Mount Knurled Shaft Dia: 6mm

Be the first to review this product

$0.59

Qty Available: 398888

In stock

Quick Overview

ALPHA - Get It Fast - Same Day Shipping

Details

Manufacturer: ALPHA
Manufacturer Part No: RV170SF-30-17K-B10K


Specifications
Power: 0.1W
Resistance: 10K OHM OHMS
Maximum Working Voltage: 200VAC
Switch Rating Voltage: 12VDC , 1A
Type: Linear
Type B
Features
On-Off Switch
PCB Mount
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length:7mm
Length of thread : 5mm
Total Shaft Length(L):17 mm
Mounting Hole: 7mm
Base Diameter: 17mm
Total Rotation Angle: 260 ± 5°

Additional Information

Manufacturer ALPHA
MPN RV170SF-30-17K-B10K
SKU A-4746
