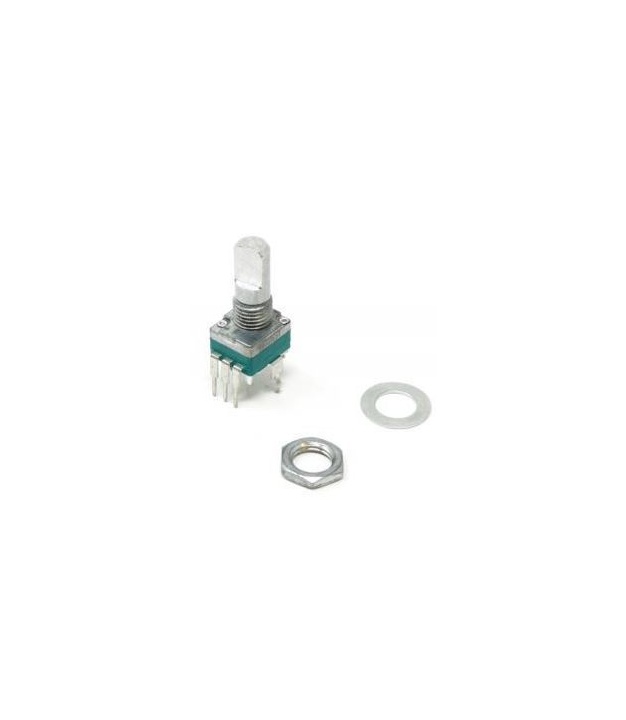

10K OHM Linear Taper Potentiometer D Shaft PCB 9mm
$1.21

10K OHM Linear Taper Potentiometer D Shaft PCB 9mm

Available Qty: 892 2000 more arriving: Nov 30, 2026
SKU: A-5589
ALPHA
Shaft Diameter: 6.00mm D Shaft
Shaft Length: 15mm (10mm+5mm)
PCB Mount
$1.21
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RD901F-40-15F-B10K
Datasheet: Click Here

Specifications
Adjustment Type: Top Adjustment
Terminals: PCB Mount
Resistance: 10K OHM OHMS
Type: Linear
Type B
Metal D Shaft
Shaft Diameter: 6.00mm
Shaft D Diameter: 4.5mm
Shaft D Length: 7mm
Shaft Length: 15mm (10mm+5mm)
Mounting Hole: 7.5mm
Base Width: 9.5mm
300°ROTATION MONO UNIT

More Information

Same Spec Items A-5590, A-5591
SKU A-5589
Manufacturer ALPHA
MPN RD901F-40-15F-B10K
Can be used with -

Customer Ratings

There are no reviews yet
