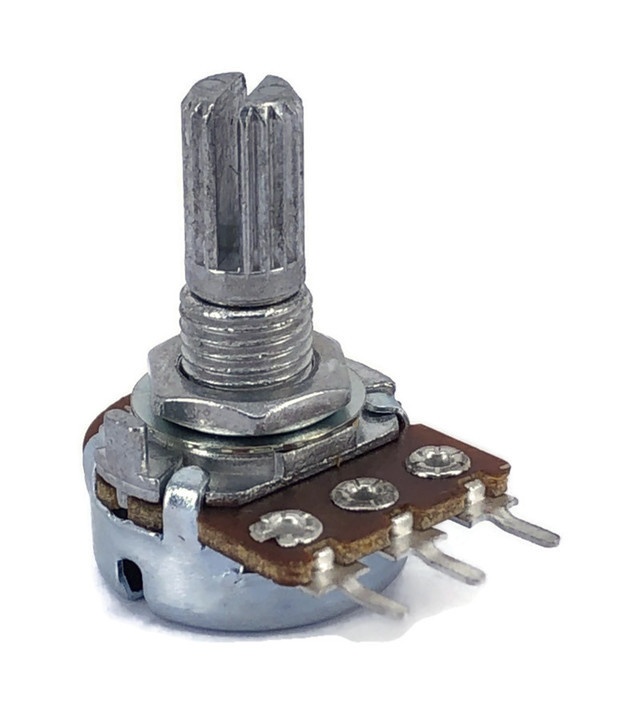

10K OHM Linear Taper Potentiometer
$0.50

10K OHM Linear Taper Potentiometer

Available Qty: 479
SKU: A-5410
ALPHA
ALPHA 17MM
SHAFT DIA: 6.00MM
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-20-17K-B10K-3
Datasheet: Click Here

Specifications
Adjustment Type: Top Adjustment
Power: 0.125W
Resistance: 10K OHM OHMS
Type: Linear
Type B
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5

More Information

Same Spec Items -
SKU A-5410
Manufacturer ALPHA
MPN RV16AF-20-17K-B10K-3
