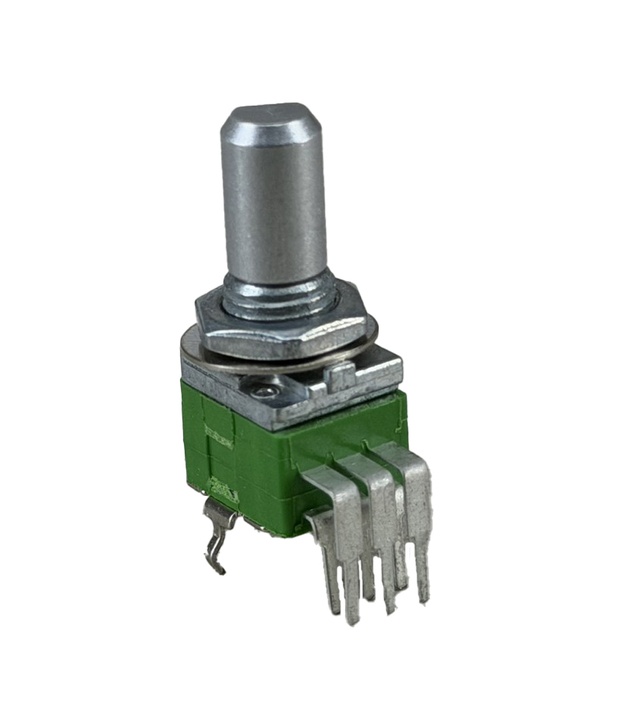

10K OHM Linear Dual Taper Potentiometer D SHAFT PCB 9mm
$1.49

10K OHM Linear Dual Taper Potentiometer D SHAFT PCB 9mm

Available Qty: 500
SKU: A-8618
ALPHA
B10K
9MM
PCB Mount
$1.49
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RD902F-40-15F-B10K
Datasheet: Click Here
RoHS: Yes

Specificationst
Adjustment Type: Top Adjustment
Terminals: PCB Mount
Resistance: 10K OHM OHMS
Type: Linear Dual Gang
Type B
Metal D Shaft
Shaft Diameter: 6.00mm
Shaft D Diameter: 4.5mm
Shaft D Length: 7mm
Shaft Length: 15mm (10mm+5mm)
Mounting Hole: 7.5mm
Base Width: 9.5mm
300°ROTATION ANGLE

More Information

Same Spec Items -
SKU A-8618
Manufacturer ALPHA
MPN RD902F-40-15F-B10K
