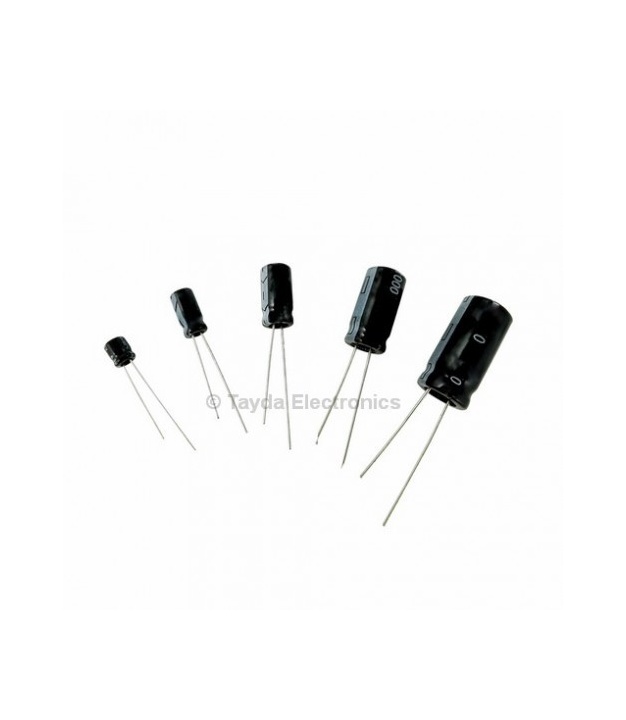

100uF 10V 105C Aluminum Electrolytic Capacitor 5x11mm PANASONIC
$0.12

100uF 10V 105C Aluminum Electrolytic Capacitor 5x11mm PANASONIC

Available Qty: 211
SKU: A-4145
Panasonic
Tolerance: ±20 % (120Hz/+20 ° C)
Pin Spacing: 2 mm
FM Series
Long Life Up To 7000 Hours
Low Impedance 40% to 70% less than FC Series
Wide Temperature Range
$0.12
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: Panasonic
Manufacturer Part No.: EEUFM1A101
Datasheet: Click Here
RoHS: Yes

Features:
-Wide temperature range, long life: 105℃ 2000 to 7000 hours.
-Low Impedance(40% to 70% less than FC Series)

Specifications
Capacitance: 100uF
Voltage-Rated: 10V
Tolerance: ±20%
Wide Operating Temperature Range: -40°C to +105°C
Ripple Current (100 kHz) (+105°C): 280 mA
Diameter*Length: 5*11 mm
Lead Diameter : 0.5 mm
Pin Spacing: 2 mm

More Information

Same Spec Items -
SKU A-4145
Manufacturer Panasonic
MPN EEUFM1A101
