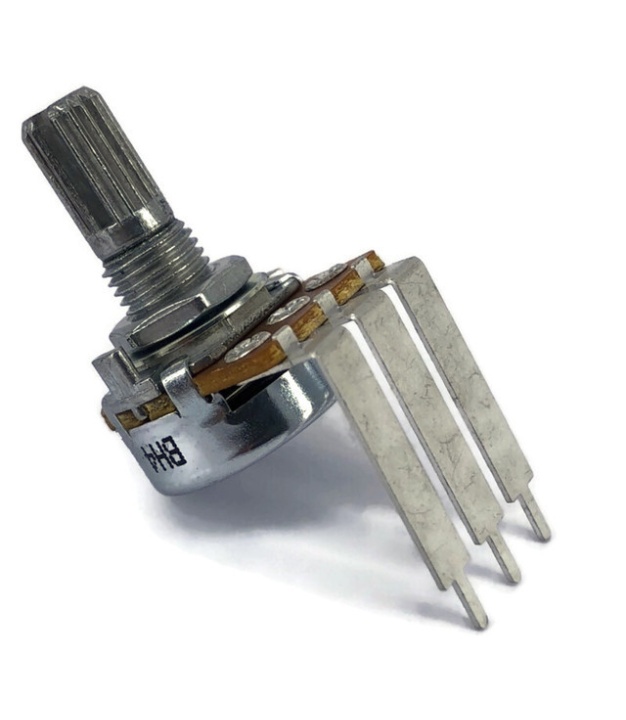

100K OHM Logarithmic Taper Potentiometer Spline Shaft PCB Mount
$0.59

100K OHM Logarithmic Taper Potentiometer Spline Shaft PCB Mount

Available Qty: 1097
SKU: A-4955
ALPHA
ALPHA 16MM
PCB Mount
A100K OHM LOGARITHMIC
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.59
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-42-17K-A100K-3
RoHS: Yes

Specifications
Power: 0.06W
Resistance: 100K OHM OHMS
Type: Logarithmic
Type A
Features
T18 Spline Shaft
PCB Mount
Suits Most Standard knobs
Pin Length: 21.4mm
Pin Thickness: 0.5mm
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**This product was updated from 4M type pins to 42 type pins on 28 September 2021.
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 28 September 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-4955
Manufacturer ALPHA
MPN RV16AF-42-17K-A100K-3
Can be used with -
