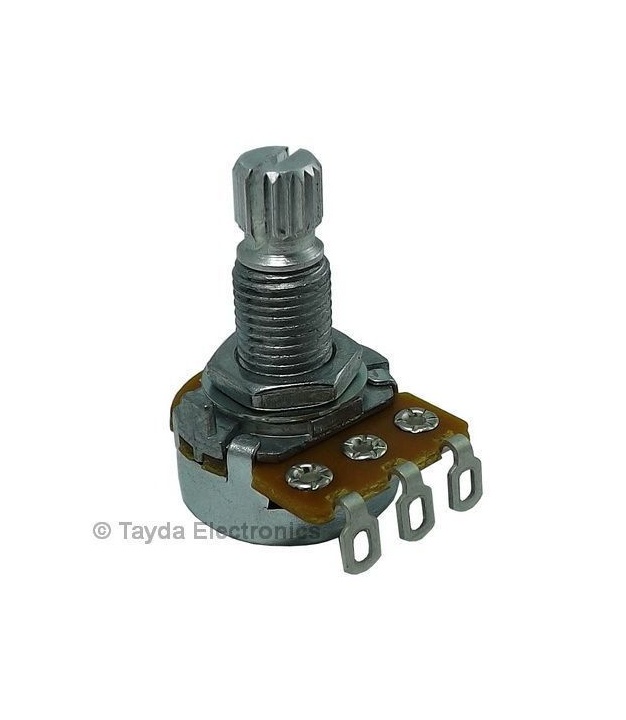

100K OHM Linear Taper Potentiometer Spline Shaft Solder Lugs with Center Detent

SKU: A-4843
ALPHA
ALPHA
B100K OHM LINEAR
SOLDER LUGS
T18 SPLINE SHAFT 17mm (7mm+10mm)
SHAFT DIA: 6.00MM
WITH DUST SEAL
$0.66
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-10B6-17K-B100K-CC
Datasheet: Click Here

Specifications
Power: 0.125W
Resistance: 100K OHM OHMS
Type: Linear
Type B
Features
Center Detent
Spline Shaft
Solder Lugs
Suits Most Standard knobs

Shaft Diameter: 6mm
Shaft Length: 17mm(7mm+10mm)
Length of thread : 10mm
Mounting Hole: 7mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-4843
Manufacturer ALPHA
MPN RV16AF-10B6-17K-B100K-CC
Can be used with -

Customer Ratings

There are no reviews yet
