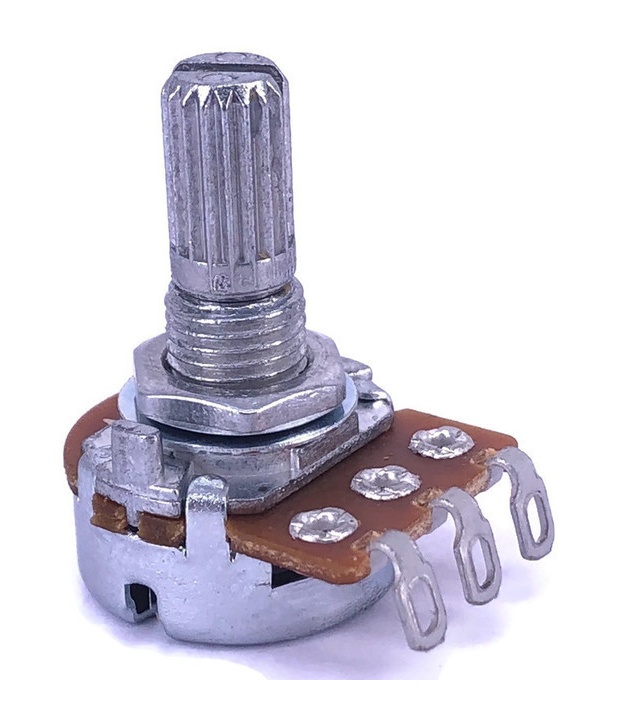

1M OHM Logarithmic Taper Potentiometer with Solder Lugs
$0.50

1M OHM Logarithmic Taper Potentiometer with Solder Lugs

Available Qty: 536
SKU: A-1915
ALPHA
ALPHA 17MM
SHAFT DIA: 6.00MM
Solder Lugs
T18 SPLINE SHAFT 17mm (10.5mm+6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: A1M 17mm
Solder Lugs
Datasheet: Click Here

Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 1M OHM OHMS
Type: Logarithmic
Type A
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 25 MAY 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items A-5420
SKU A-1915
Manufacturer ALPHA
MPN 1M 17mm
Can be used with -

Customer Ratings

There are no reviews yet
