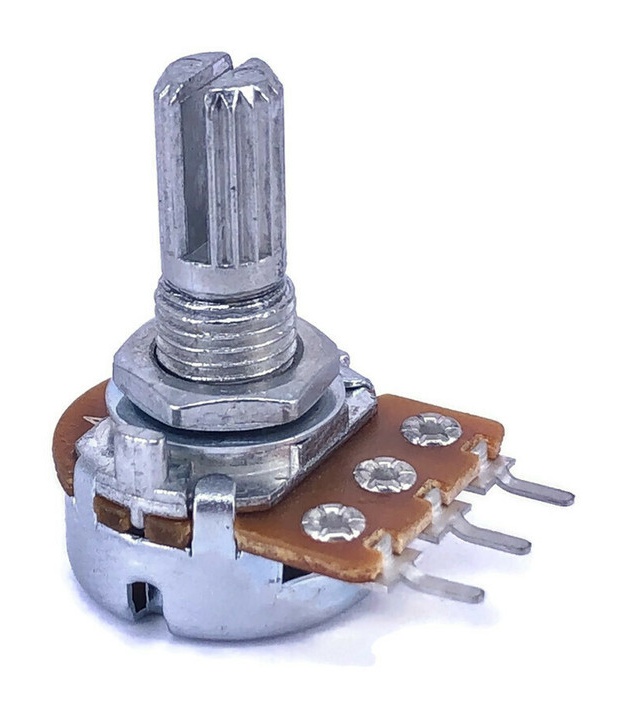

500 OHM Linear Taper Potentiometer Spline Shaft
$0.50

500 OHM Linear Taper Potentiometer Spline Shaft

Available Qty: 401
SKU: A-1925
ALPHA
ALPHA
SHAFT DIA: 6.00MM
B500 OHM LINEAR l PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
  • Qty
  • Price/Each
  • 100 - 499
  • $0.49
  • 500+
  • $0.48
Subtotal
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV160-20-17K-B52-EV
Datasheet: Click Here

Specifications
Power: 0.125W
Resistance: 500 OHM OHMS
Type: Linear
Type B
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm

Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 15 DECEMBER 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-1925
Manufacturer ALPHA
MPN RV160-20-17K-B52-EV
