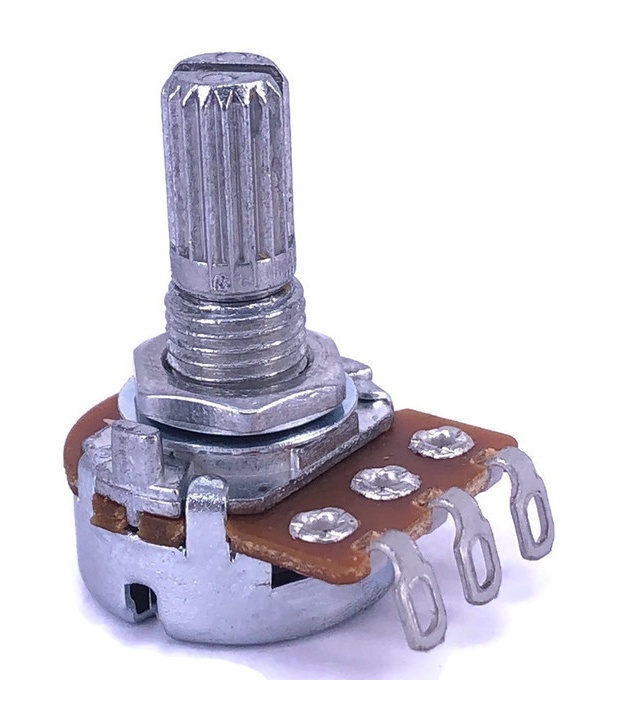

2K OHM Linear Taper Potentiometer with Solder Lugs
$0.50

2K OHM Linear Taper Potentiometer with Solder Lugs

Available Qty: 108 500 more arriving: Sep 20, 2026
SKU: A-1967
ALPHA
ALPHA l SOLDER LUGS
SKU: A-1967
SHAFT DIA: 6.00MM
T18 SPLINE SHAFT 17mm (10.5mm+6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: B2K 17mm
Solder Lugs

Datasheet: Click Here
RoHS: Yes


Specifications
Adjustment Type: Top Adjustment
Power: 0.125W
Resistance: 2K OHM OHMS
Type: Linear
Type B
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 29 APRIL 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-1967
Manufacturer ALPHA
MPN B2K 17mm
