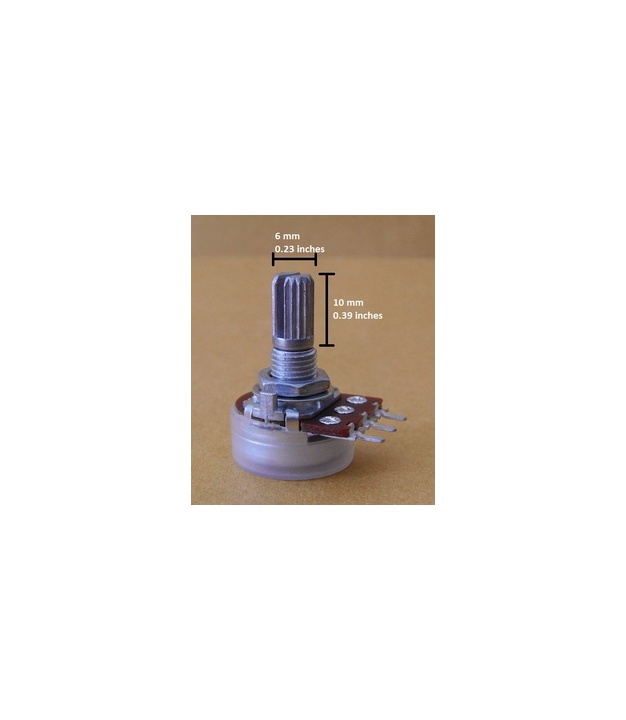

200K OHM C200K 200KC Anti-Log Taper Potentiometer

SKU: A-1953
ALPHA
ALPHA 17MM
SHAFT DIA: 6.00MM
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
WITH DUST SEAL
$0.50
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: C200K 17mm
Datasheet: Click Here
With Dust Seal

Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 200K OHM OHMS
Type: Logarithmic
Type C
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm

Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-1953
Manufacturer ALPHA
MPN C200K 17mm
