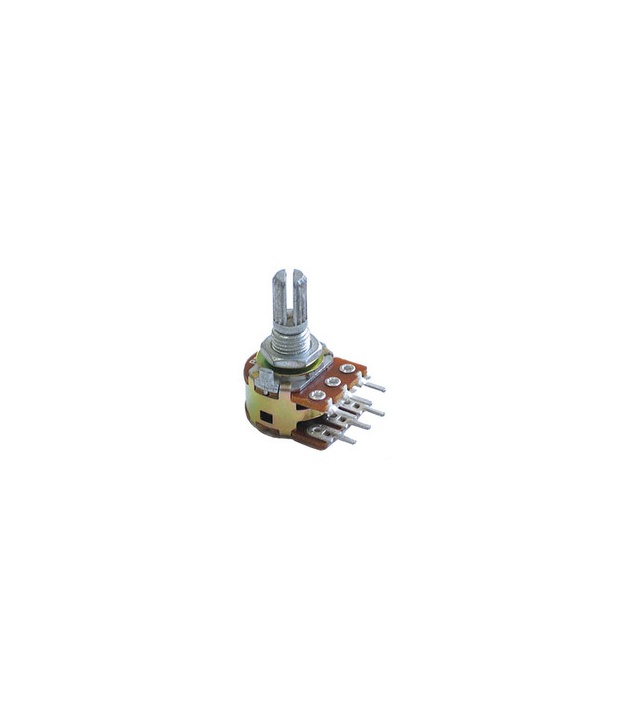

500K OHM Logarithmic Dual Taper Potentiometer
$0.80

500K OHM Logarithmic Dual Taper Potentiometer

Available Qty: 46
SKU: A-1922
ALPHA
ALPHA 17MM
SHAFT DIA: 6.00MM
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
$0.80
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: A500K Dual
Datasheet: Click Here
RoHS: Yes

Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 500K OHM OHMS
Type: Logarithmic Dual Gang
Type A
Features
Knurled Shaft
Suits Most Standard Knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Base Height: 9mm
Rotation Angle: 300 ± 5°
