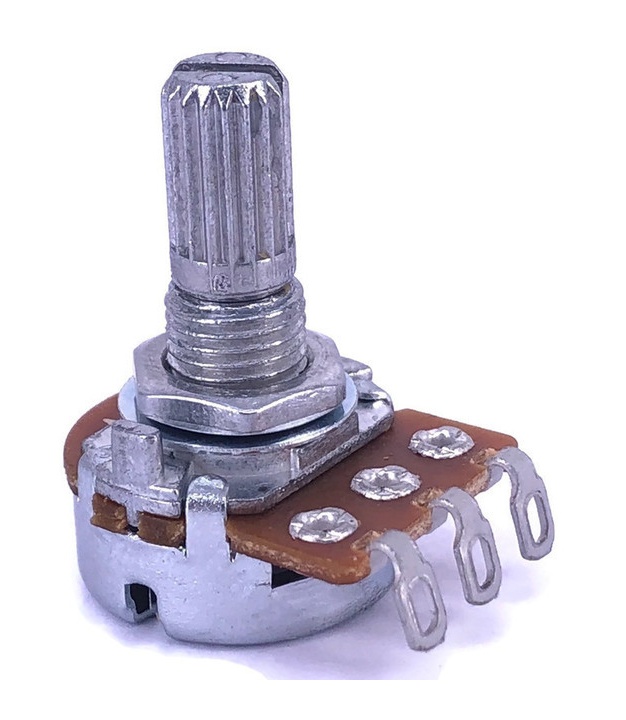

100K OHM Logarithmic Taper Potentiometer with Solder Lugs

Sale

100K OHM Logarithmic Taper Potentiometer with Solder Lugs

Available Qty: 1556

SKU: A-1956

ALPHA

ALPHA 17MM

SHAFT DIA: 6.00MM

Solder Lugs

T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)

Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now

Buy Dust Seal Click Here

$0.50

Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: A100K 17mm
Solder Lugs
Datasheet: Click Here
RoHS: Yes
Specifications
Adjustment Type: Top Adjustment
Power: 0.06W
Resistance: 100K OHM OHMS
Type: Logarithmic
Type A
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 29 JULY 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items	-
SKU	A-1956
Manufacturer	ALPHA
MPN	A100K 17mm
Can be used with	-
