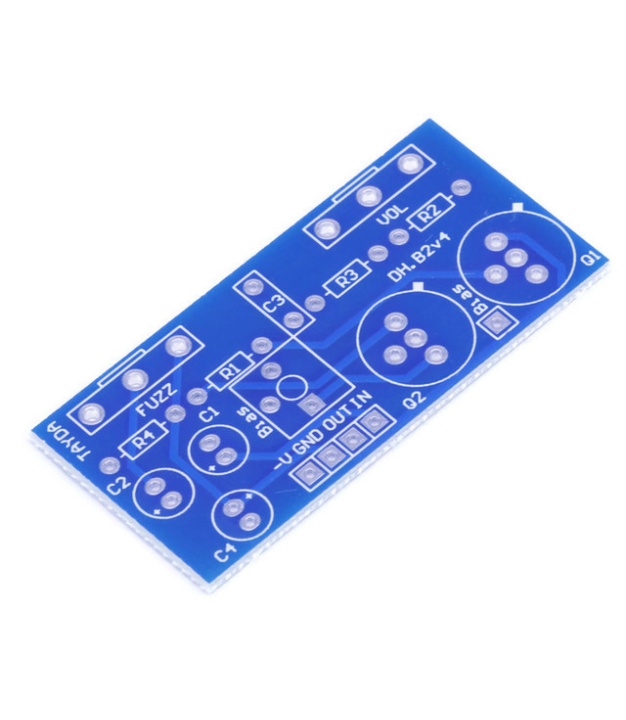

Fuzz Face DIY PCB Guitar Effect
$8.00

Fuzz Face DIY PCB Guitar Effect

Available Qty: 51
SKU: A-1059
DH Electro Acoustics
PCB for Fuzz Face DIY project
See Project details at TAYDAKITS FUZZ FACE KIT
$8.00
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: DH Electro Acoustics
Manufacturer Part No: DHB2

Have fun learning about electronics and building a useful guitar effect at the same time. First made in 1966 this simple electronics project will give you the classic distorted sound you need for your electric guitar. This guitar effect is based off of the Shunt Series Feedback Amplifier, its current sampling negative feedback!

This listing sale is ONLY for PCB itself.
You can purchase all other components required for this project from Tayda (components are sold separately). You can find list of parts required for this project from below link.
For detailed instructions please visit TAYDAKITS FUZZ FACE KIT
http://www.taydakits.com/instructions/fuzz-face

Specifications
Effect Type: Fuzz
High quality manufactured PCB
Board-mounted potentiometers
Designed for Hammond 1590B enclosure
PCB Dimensions: 48 x 23 mm

More Information

Same Spec Items -
SKU A-1059
Manufacturer DH Electro Acoustics
MPN DHB2
Can be used with -

Customer Ratings

There are no reviews yet
