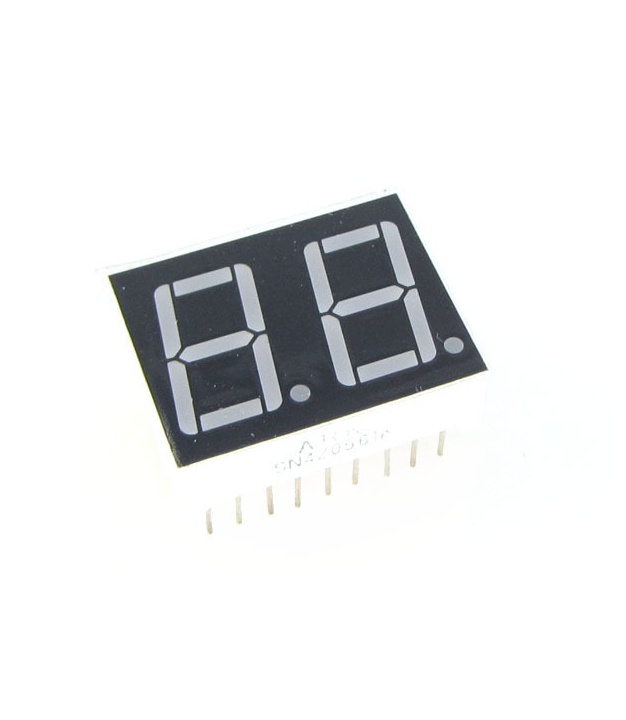

LED Display 7 Segment 2 Digit 0.40 inch Common Cathode Green
SKU: A-1708
OASIS
$0.52
was
Have questions?
Expert help just one click away
Contact Us
Product Description
RoHS: Yes
Datasheet: N/A
Display Type: 7 Segment
Number of Digit / Alpha: 2
Color: Green
digit / alpha 'Height' (inch): 0.40
Common Pin: Common Cathode
Face Color: Black
Len Epoxy Color: White Diffused
More Information
| Same Spec Items | - |
|---|---|
| SKU | A-1708 |
| Manufacturer | OASIS |
| MPN | 4022A |
| Can be used with | - |
Customer Ratings
4.3/5
Based on 3 reviews
|
5 Stars |
|
6 |
|
4 Stars |
|
0 |
|
3 Stars |
|
3 |
|
2 Stars |
|
0 |
|
1 Star |
|
0 |
5
Quality
5
Value
5
Price
Not quite what I expected but it worked out ok in the end.
The item is marked simply AG with no part number and is of good quality.
The body measures 20mm x 16mm x 7mm and it has extra long leads. The pins are spaced on even .1” so it is breadboard and PCB friendly. The display has 'feet' as to allow air underneath for better cooling.
But it is not quite what I expected when I made my order...
I thought I was buying a dual 7seg CC display with individual leads for each LED segment. This part is not that.
Instead it is a display with only ten pins to drive all 16 segments. After a bit of head scratching I used a MAX7219 to drive the display and it works great.
For reference the pinout is as follows:
10=Dig1Common 9=SegG 8=SegF 7=SegA 6=SegB
1=SegD 2=SegDP 3=SegE 4=SegC 5=Dig2Common
I would buy this item again and I would recommend it to a friend.
