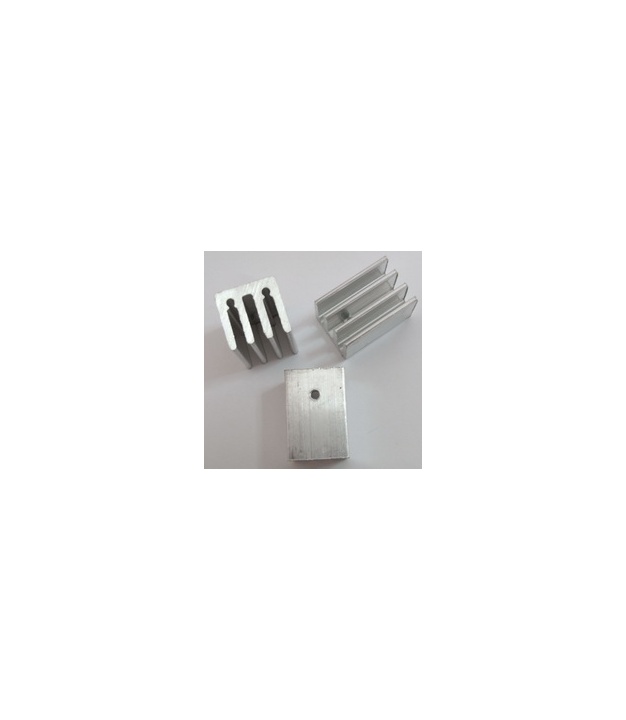

Heatsink TO-220 4 Fins Aluminium
Available Qty:
3988888
SKU: A-5093
Tayda Electronics
$0.24
was
Have questions?
Expert help just one click away
Contact Us
Product Description
|
Suits TO-220 Devices |
More Information
| Same Spec Items | - |
|---|---|
| SKU | A-5093 |
| Manufacturer | Tayda Electronics |
| MPN | Heatsink TO-220 4 Fins Aluminium |
| Can be used with | - |
Customer Ratings
4.9/5
Based on 10 reviews
|
5 Stars |
|
27 |
|
4 Stars |
|
3 |
|
3 Stars |
|
0 |
|
2 Stars |
|
0 |
|
1 Star |
|
0 |
5
Quality
5
Value
5
Price
Quality product
The item has no manufacturer or part number marked on it but it is a quality product.
It is basically an aluminum extrusion with saw cut ends and tapped hole.
The saw cuts are 'raw' but not unreasonably sharp and do not have a burr.
The rear heat transfer surface is reasonable flat but can be enhanced by lapping. To do this rub it across a piece of fine sandpaper on a flat surface until the entire surface shines.
The hole is tapped for an M3x.5 screw. I used the a mounting screw from an old computer CDROM and it worked great.
There was a slight burr on the edge of the hole down between the fins. I used a razor knife to remove it to avoid the off chance of it flaking off later and causing a short.
The heatsink is 26mm long x 17mm wide x17mm tall (fin side). The base is 2.5MM thick, the fins are 1.5MM thick. The hole is on center line between the fins and 7.5MM from the top. The unit weighs 10g (0.4oz) (without a screw).
With the screw in it is just the right height to allow the legs to push through into your PCB or breadboard. If you use it with your breadboard be sure to leave an air gap underneath to avoid transferring the heat to the plastic.
I am using it to cool a 7805 Vreg and it works great.
Overall I would buy it again and would recommend it to a friend.
Penname
It is basically an aluminum extrusion with saw cut ends and tapped hole.
The saw cuts are 'raw' but not unreasonably sharp and do not have a burr.
The rear heat transfer surface is reasonable flat but can be enhanced by lapping. To do this rub it across a piece of fine sandpaper on a flat surface until the entire surface shines.
The hole is tapped for an M3x.5 screw. I used the a mounting screw from an old computer CDROM and it worked great.
There was a slight burr on the edge of the hole down between the fins. I used a razor knife to remove it to avoid the off chance of it flaking off later and causing a short.
The heatsink is 26mm long x 17mm wide x17mm tall (fin side). The base is 2.5MM thick, the fins are 1.5MM thick. The hole is on center line between the fins and 7.5MM from the top. The unit weighs 10g (0.4oz) (without a screw).
With the screw in it is just the right height to allow the legs to push through into your PCB or breadboard. If you use it with your breadboard be sure to leave an air gap underneath to avoid transferring the heat to the plastic.
I am using it to cool a 7805 Vreg and it works great.
Overall I would buy it again and would recommend it to a friend.
5
Quality
5
Value
5
Price
good value
adorable little heatsinks at a pretty fair price
Kris
4
Quality
4
Value
4
Price
Can use #4-40 machine screws
Work great with TO220 packages
Ted W
5
Quality
5
Value
5
Price
Recommended Product -> Specs
These are great quality and the price is right.
Specs:
Weight: 10.35 g
Length x Width x Fin Height: 26 x 17 x 17 mm
Mounting Hole Location: 7.5 mm from end
Mounting Hole: M3 Thread, standard pitch
Recommended Mounting Screw: M3x5
Thermal Resistance Natural Convection: 17.5°C/W
Thermal Resistance Forced Air Flow: 4°C/W
Nicholas
Specs:
Weight: 10.35 g
Length x Width x Fin Height: 26 x 17 x 17 mm
Mounting Hole Location: 7.5 mm from end
Mounting Hole: M3 Thread, standard pitch
Recommended Mounting Screw: M3x5
Thermal Resistance Natural Convection: 17.5°C/W
Thermal Resistance Forced Air Flow: 4°C/W
5
Quality
5
Value
5
Price
Great, but how many C/W?
Have used these very nicely on LM350s, but would love to know their thermal resistance rating.
Robert
5
Quality
5
Value
5
Price
Awesome
Great price for even better product
