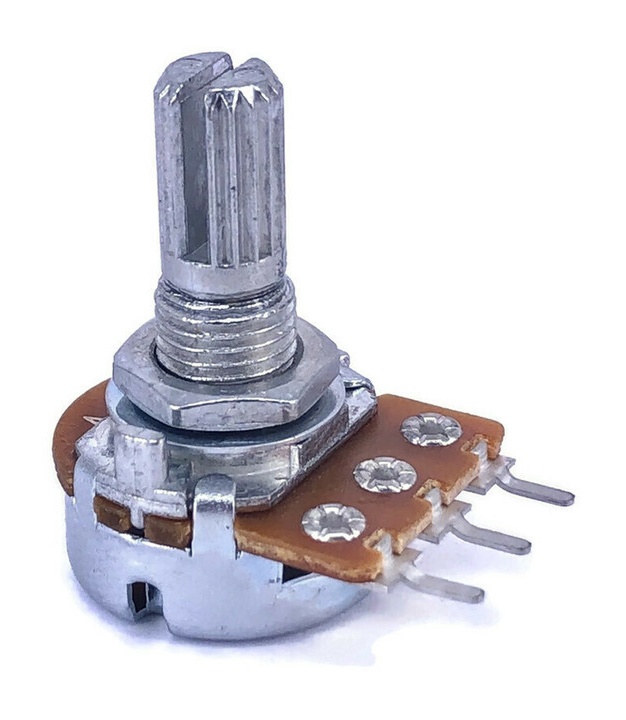

1K OHM Linear Taper Potentiometer
$0.50
Available Qty: 745
SKU: A-1926
ALPHA
ALPHA 17mm
SHAFT DIA: 6.00MM
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: B1K 17mm
Datasheet: Click Here

Specifications
Adjustment Type: Top Adjustment
Power: 0.125W
Resistance: 1K OHM OHMS
Type: Linear
Type B
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 26 JUNE 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here

More Information

Same Spec Items -
SKU A-1926
Manufacturer ALPHA
MPN B1K 17mm
Can be used with -

Customer Ratings

5/5
Based on 2 reviews

5 Stars

6

4 Stars

0

3 Stars

0

2 Stars

0

1 Star

0
Quality
Value
Price
Awesome potentiometer
I used this in a LED flasher circuit, where the potentiometer controlled the speed of the flash. when turned all the way to one side, the LED cuts. It may be a problem with the potentiometer, or that may just be normal for that circuit.
Quality
Value
Price
Good quality potentiometers
Good quality potentiometers, with dust-seal, standard shaft for knobs. Or you can also use screwdriver. comes with washer and nut, for installation.
