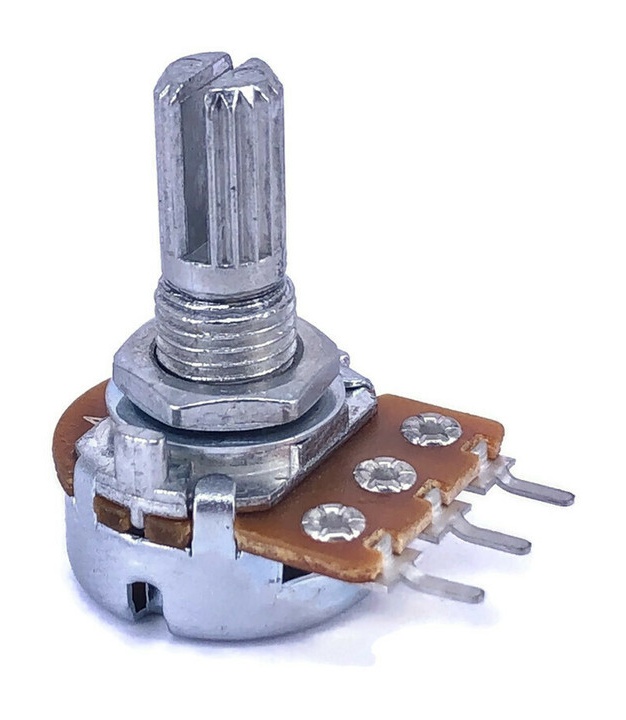

5K OHM Linear Taper Potentiometer
$0.50

5K OHM Linear Taper Potentiometer

Available Qty: 471
SKU: A-1928
ALPHA
ALPHA 17MM
B5K OHM LINEAR
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now
Buy Dust Seal Click Here
$0.50
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: RV16AF-20-17K-B5K
Datasheet: Click Here
RoHS: Yes

Specifications
Adjustment Type: Top Adjustment
Power: 0.125W
Resistance: 5K OHM OHMS
Type: Linear
Type B
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 29 JULY 2021.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here
