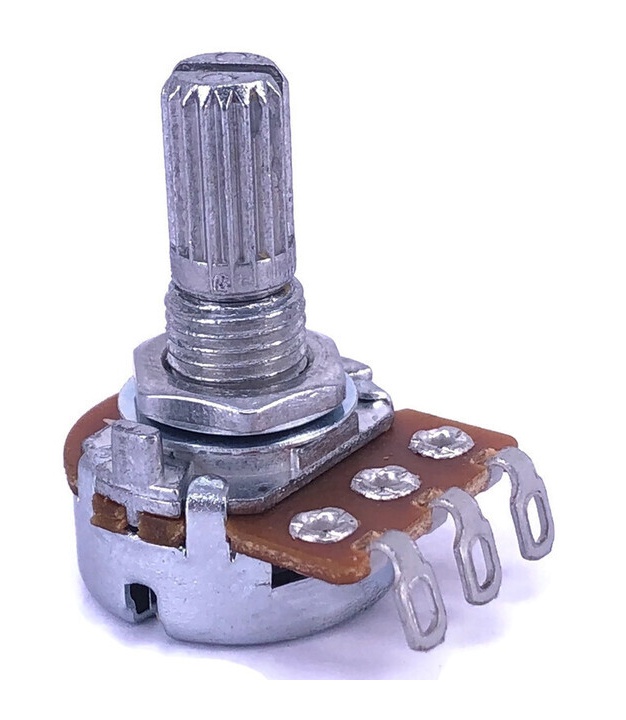

500K OHM Linear Taper Potentiometer with Solder Lugs

Sale

500K OHM Linear Taper Potentiometer with Solder Lugs

Available Qty: 698

SKU: A-1924

ALPHA

ALPHA 17MM

SHAFT DIA: 6.00MM

Solder Lugs

Shaft Length: 17mm(10.5mm+6.5mm)

Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now

Buy Dust Seal Click Here

$0.50

Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer: ALPHA
Manufacturer Part No: B500K 17mm
Solder Lugs
Datasheet: Click Here
RoHS: Yes

Specifications
Adjustment Type: Top Adjustment
Power: 0.125W
Resistance: 500K OHM OHMS
Type: Linear
Type B
Solder Lugs
Features
Knurled Shaft
Suits Most Standard knobs
Shaft Diameter: 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Rotation Angle: 300 ± 5°
**THIS PRODUCT DESCRIPTION AND IMAGE UPDATED ON 03 MAY 2024.
**Alpha doesn't provide plastic DUST SEAL anymore, we sell them separately now Click Here
