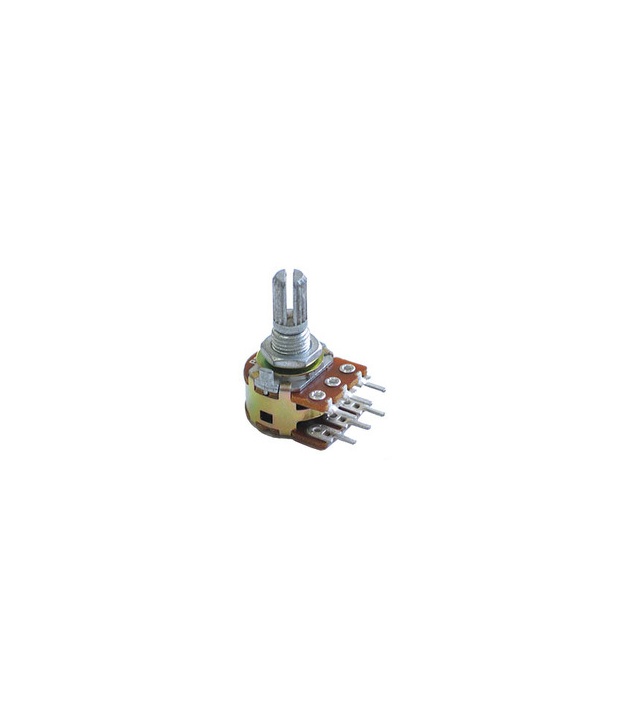

1M OHM Linear Dual Taper Potentiometer

SKU: A-1947
ALPHA
ALPHA 17MM
SHAFT DIA: 6.00MM
PCB Mount
T18 SPLINE SHAFT 17mm (10.5mm + 6.5mm)
$0.80
This item is currently out of stock.
Have questions? Expert help just one click away Contact Us

Product Description

Manufacturer ALPHA
Manufacturer Part No B1M Dual
Datasheet: Click Here
RoHS: Yes

Specifications
Adjustment Type Top Adjustment
Power 0.125W
Resistance 1M OHM OHMS
Type Linear Dual Gang
Type B
Features
Knurled Shaft
Suits Most Standard Knobs
Shaft Diameter 6mm
Shaft Length: 17mm(10.5mm+6.5mm)
Length of thread: 6.5mm
Mounting Hole: 7.5mm
Base Diameter: 16mm
Base Height: 9mm
Rotation Angle: 300 ± 5°

More Information

Same Spec Items -
SKU A-1947
Manufacturer ALPHA
MPN B1M Dual
